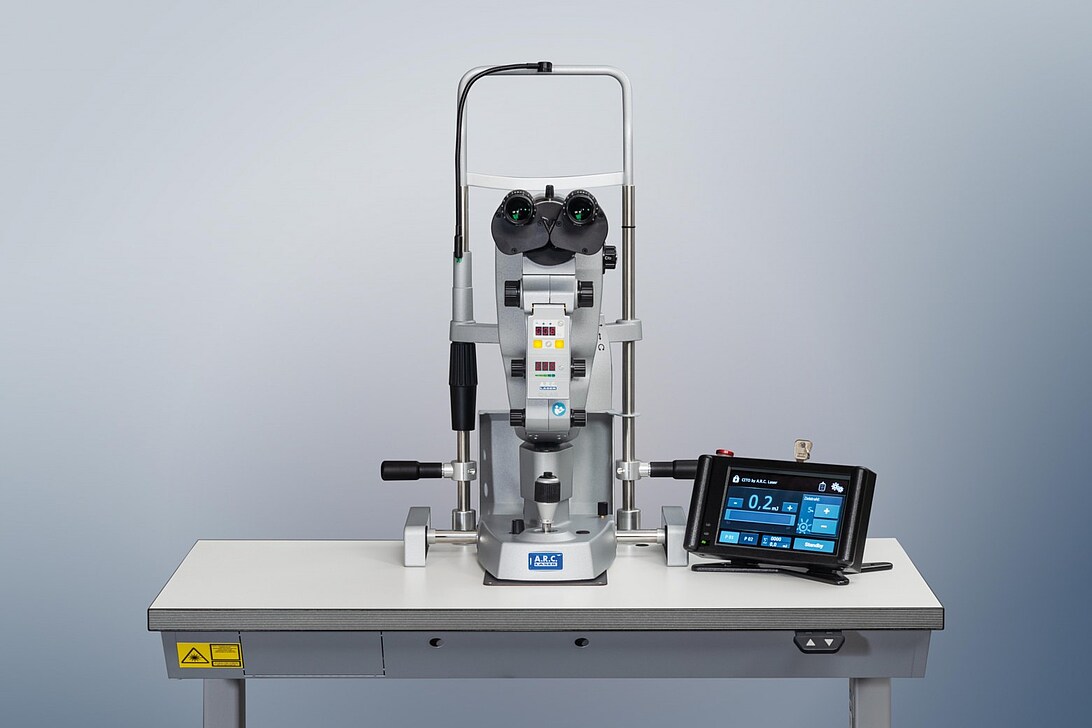

COBRA

The new generation of compact lasers - Nd:YAG and SLT combined in one device

SLT and Nd:YAG lasers are indispensable in today’s modern ophthalmic practice.

With CORBRA, you combine both fully independent lasers in one space-saving and ergonomic unit.

CORBRA integrates CITO 532 for SLT and Q-Las for capsulotomy and iridotomy – powered by the highly efficient µ-Chip technology.

Brilliant optics

Reliable laser for the anterior segment of the eye

Specially tempered optics with high resolution for a detailed view into the anterior segment of the eye.

Optionally available with convergent or parallel lens barrel. Simply see clearer: The integrated neutral color filter protects you from unwanted laser reflections.

Do you need a YAG and a SLT laser?

A.R.C. Laser is leading in laser ophthalmology and offers a comfortable system with COBRA for you:

Customized for the anterior segment of the eye
Two modern lasers in one unit
Sufficient space under the treatment table, also for patients with wheelchair
Wheelchair-friendly 2-column-design

Electronic level control up to 920 mm via two height-adjustable motor columns
The compact system consisting of laser, table and slit lamp optionally with rollers
µ-chip SLT
Homogeneous spot
No wear-out effects and without energy loss over the entire life cycle

▽more...Less

Want more?

COBRA – Fastest repetition frequency worldwide

Other SLT systems are based on flash lamp technology. The resulting active beam depends on charging cycles of the capacitors, which is why they are so slow. The modern µ-chip SLT from A.R.C. on the other hand convinces by:

Quick pulse sequences
Perfect stain quality
Temperature stability

SLT laser:

Quick Refresh ~10Hz Rep-Rate
TouchScreen

Nd:YAG Laser:

Precise spot
worldwide smallest focus spot

▽more...Less

Technical data

The technical data of the combined lasers correspond to those of the CITO and Q-LAS single systems:

Laser SLT	Q-switched 532 nm Frequency Doubled Nd:YAG
Energy per pulse	0.2 to 2.0 mJ, quasi continuously
Size treatment spot	400 μm in aiming beam focus
400 µm in max. Repetition rate	> 10 Hz
Pulse width	3 ns
Aiming beam	Red, diode 635 nm / 1 mW, adjustable
Laser protection filter	permanent
Radiation divergence	3.2°
Laser class	3b / 532 nm, E = 2.5 mJ Aiming beam: 635 nm, P < 1 mW
Laser Nd:YAG	Q-switched 1064 nm Nd:YAG
Energy per pulse	0.3 to 12 mJ, quasi continuous
Size treatment spot	400 μm on Focus
Max. Repetition rate	0.5 to 2 Hz
Pulse width	4ns +4/-0ns
Aiming beam	red diode 635 nm / 1 mW, variable
Laser protection filter	permanent
Beam divergence	0.5 m²
Power supply	100 to 240 V, 50/60 Hz, 600 Watt
Laser class	3b / 532 nm, E = 2.5 mJ aiming beam: 635 nm, P < 1 mW
