Q-Las
the Nd:YAG laser performance redefined
The Q-LAS. It combines economic efficiency, ergonomics and longevity in a very innovative way. Energy settings from 0.5 to 10 mJ can be made via the intuitive operating concept and it is also possible to switch between Burst-Mode levels at the touch of a button.
- High efficiency thanky to µ-Chip Technology
- Superior focusing via a Dual-spot aiming beam technology
- Triple Burst-Mode
- QuickRepetition with up to 10 Hz
- Laser beam and slit illumination are coaxial
- Integrated Clear-View-Filter-Technology
- Treatment parameters always in view with the optional head-up display

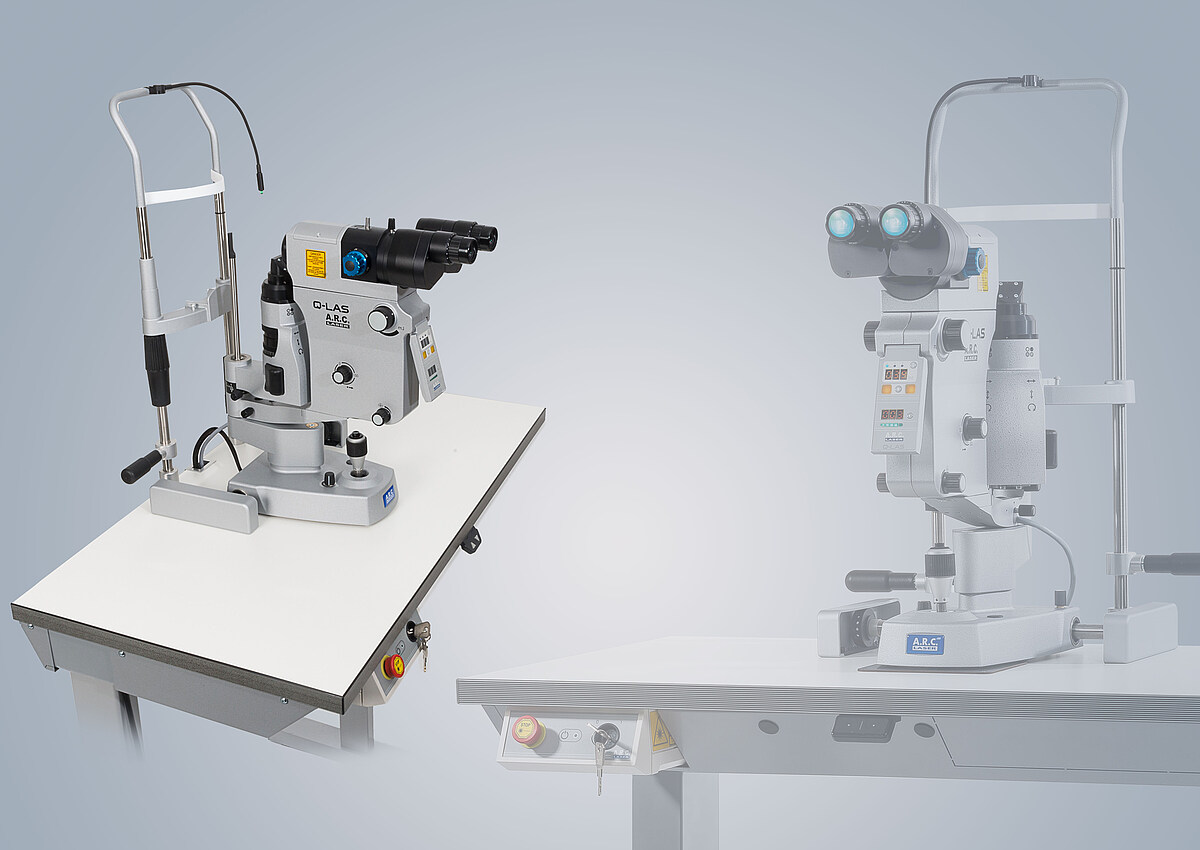

Combination systems
Q-LAS + PCL5 ZL
- with classic YAG-slit lamp
- Illumination beam path via prism
Q-LAS + PCL5 SHL
- Light source at the top of the slit projector
- highest optical quality

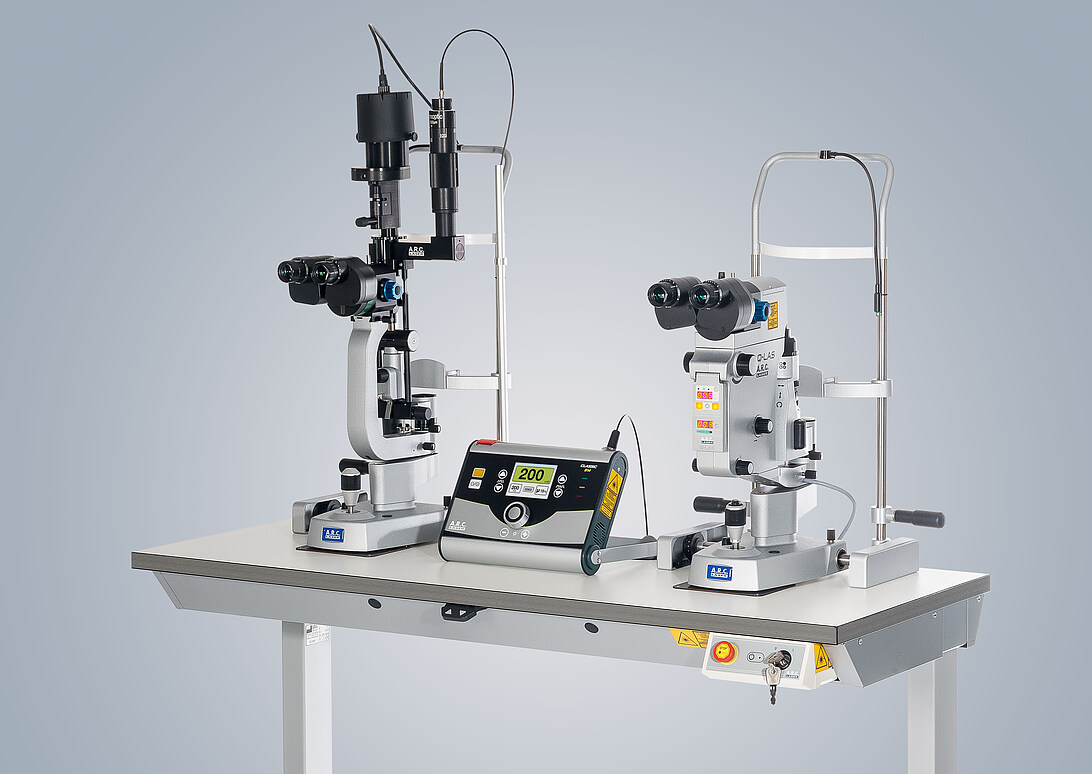

Combination system VARIO
The Q-Las can be combined with the Classic retina laser. Furthermore, the Q-Las is available with two different types of slit lamp.
Technical data
| Laser | Nd:YAG |
| Display | 7-segment Display, Idicator LED |
| Wavelength | 1064 nm |
| Pulse length | 4 ns |
| Output | 0.5-10 mJ, continuous |
| Spot diameter in air | < 10 µm |
| Angle laser beam | 16° |
| Burst Mode | 1-2-3 pulses |
| Repetition frequency | up to 10 Hz |
| Mode Structure | Gaussian |
| Focus shift | 3-stage - 0/150/300 µ - posterior |
| Aiming beam | Red / 2-beam |
| Power supply | 100 - 240 V AC, 50 - 60 Hz |
| Dimensions | 43 (H) x 33 (B) x 50 (T) cm only Laser; 130 (HH) x 86 (B) x 57 (T) cm incl. table |
| Weight | 12,6 kg laser integrated in slit lamp, 44 kg with tableh |
| Cooling | Air |
