Slit lamps are ideal for the anterior and posterior segment of the eye.
- The slit has a high light output and is convenient to adjust with one hand
- IR & UV filters are standard
- 5-way changer
- Possibility to switch between LED and halogen

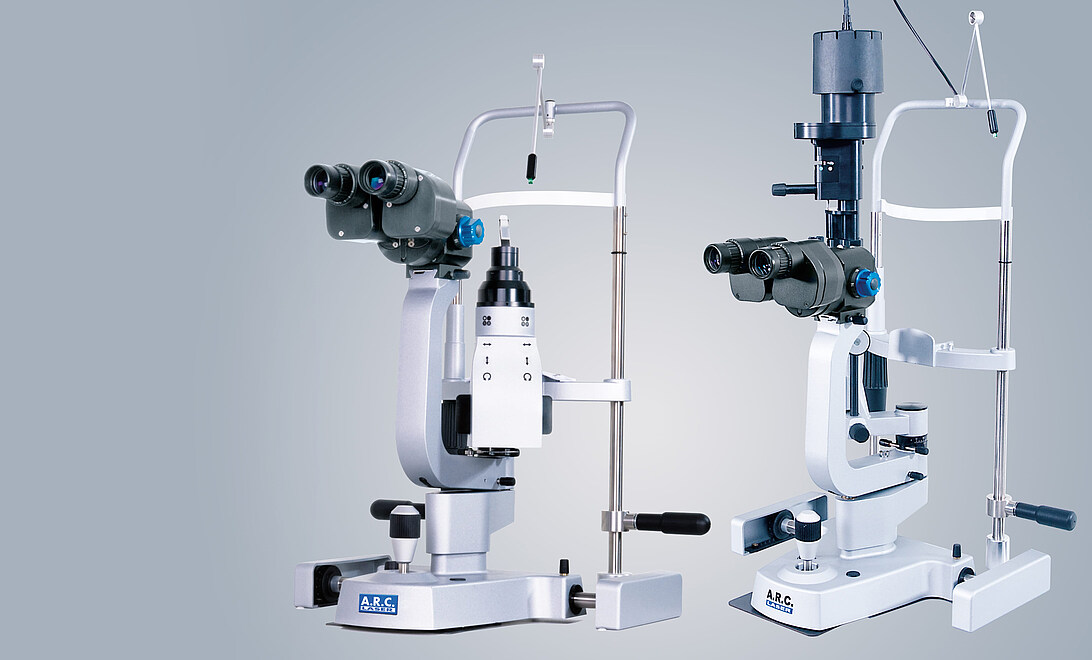

The PCL5 slit lamp features specially coated optics for a detailed view into the anterior segment of the eye with parallel or optional convergent lens barrel.
Based on this slit lamp, we are able to provide a detailed view of the inside of the eye thanks to specially coated optics with parallel or convergent lens barrel.
PCL5 SH + SuperView:
Easy handling for safe photocoagulation right into the periphery.
Head-up display: The treatment parameters are always in view without having to take your eyes off the ocular. Each change on the control dial also changes value in the display. The counter for the total energy applied is also displayed.
Technical data
PCL5 SHD
| Slit width (at 180°) | 0 to 8 mm continuously |
| Slit height | 0.5 to 8 mm continuously |
| Circle of luminous field | 0.2, 1, 2, 3, 4, 6, 8 mm test mark with fixation |
| Slit rotation | ± 90° (0-180°) |
| Adjustability of the lighting | horizontal ± 90° |
| Filter | blue, red-free (green), grey (10%) UV and heat filters are integrated |
| Lighting | Halogen 6 V, 20 W 0 lux bis 600.000 lux (Halogen) optional: LED 14 V, 5 W |
| Protection filters | optional |
| Power supply | 110 V - 240 V, 50/60 Hz |
| Weight | 12,7 kg |
PCL5 ZD
| Slit width (at 180°) | 0 to 16 mm continuously |
| Slit height | 1 to 16 mm continuously |
| Circle of luminous field | Ø: 1 mm test mark |
| Split rotation | ± 90° (0-180°) |
| Adjustability of the lighting | horizontal ± 90° |
| Filter | blue, red-free (green), grey (10%) UV and heat filters are integrated |
| Lighting | Halogen 6 V, 20 W 0 lux bis 600.000 lux (Halogen) optional: LED 14 V, 5 W |
| Protection filters | optional |
| Power supply | 110 V - 240 V, 50/60 Hz |
| Weight | 12,7 kg |
