FOX 514

Back to the Future

With the FOX 514 A.R.C. provides a battery-operated, portable retina laser for the operating room offering all treatment advantages with the typical argon wavelength of 514 nm.

Ideal for:

  • Endocoagulation
  • Retinal laser treatment with ophthalmoscope

From the xenon lamp to the argon laser to KTP lasers. I've experienced all this myself. Now the new ARGON is as small as a SLR camera - If I would have known that 43 years ago, we would have saved a lot of development work. Well, that's life.

Reinhardt Thyzel, A.R.C. Laser

History

1980ies

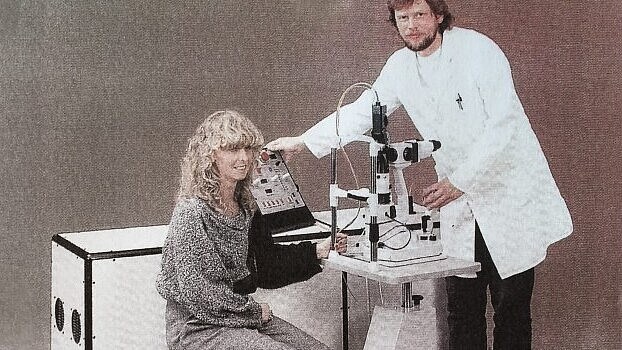

… starts with a dye laser from Meditec

The picture shows the dye laser with all colors from green to yellow to red. The housing dimensions have decreased significantly, the systems have become more favorable and have become established in clinical therapy.

2009

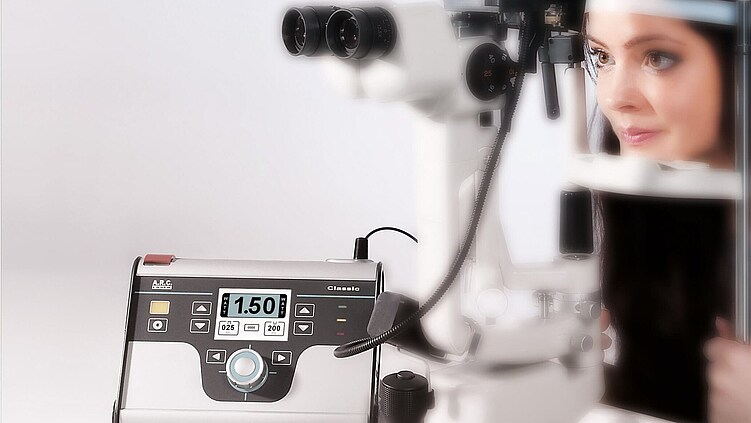

… and continues with a KTP laser from A.R.C. in 2009

The green wavelength of the argon laser – 514 nm – was missed by many when the change to the KTP with 532 nm was made.

2018

… and finally, we have arrived ‘Back to the future’ – the FOX 514

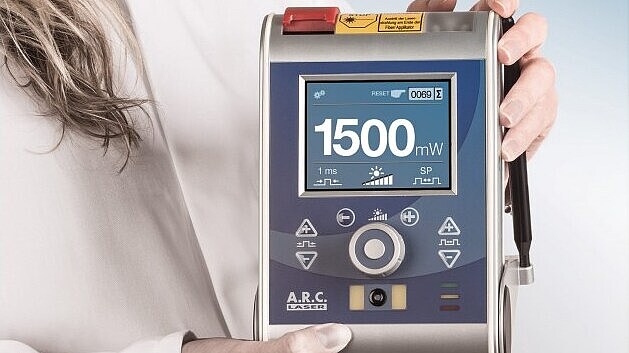

With the small portable FOX 514 we continue to write story! The new argon is small – lightweight and can be operated in battery mode without disturbing wires. Its power ranges up to 1.5 watts in cw-mode, pulsed or single-pulse mode.

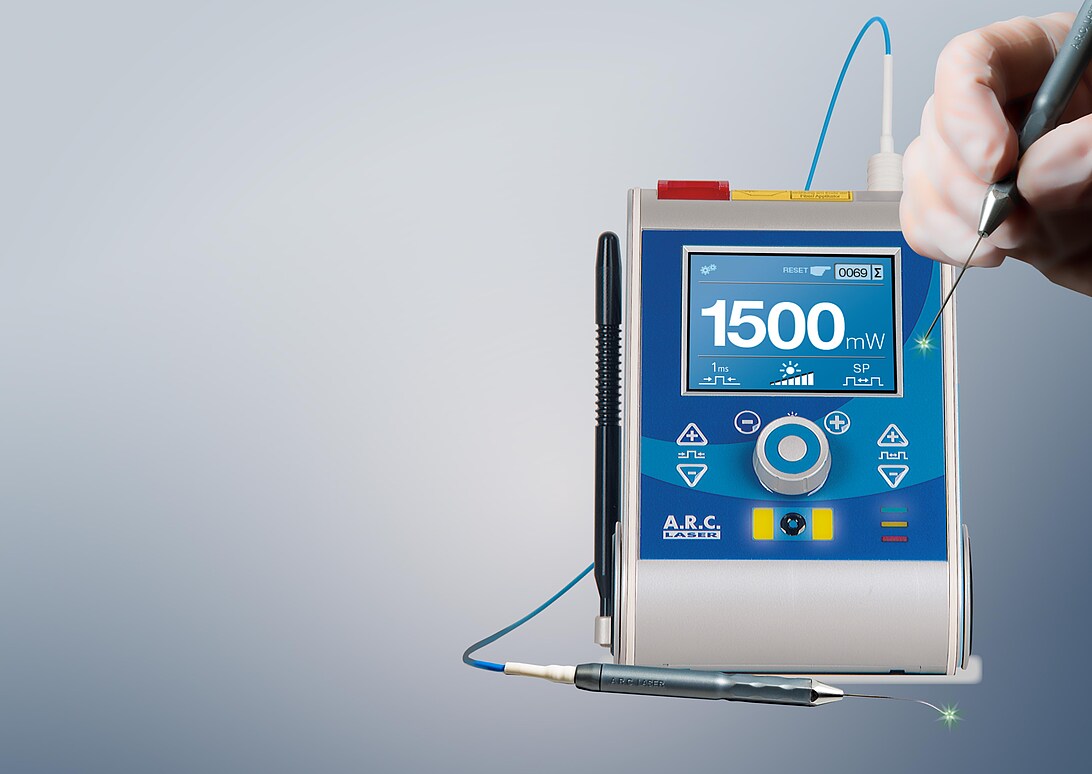

Universal accessories

No matter which laser you work with:
FOX 810 or with FOX 514, the Endo Probes can be used universally.

Technical data

* Performance at the laser head. Changes to equipment and specifications making technical progress are carried out automatically.
Laser Diodelaser
Output power* 1,5 Watt max.
Pulse length 100 µs to cw
Pulse pause 100 μs to 45s
Aiming beam 650 nm, < 1 mW
Dimensions (HxWxD) 175 x 125 x 160 mm
Weight 1,2 kg
Power supply 100 V - 240 V, 50Hz/60Hz, 1.06-0.45 A, or Integrated rechargeable battery
Laser outputs Ceramic coupling
Accessories optional LIO Laser Indirect Ophthalmoscope / Endo Probes
