Cetus NanoLaser for Cataract Surgery

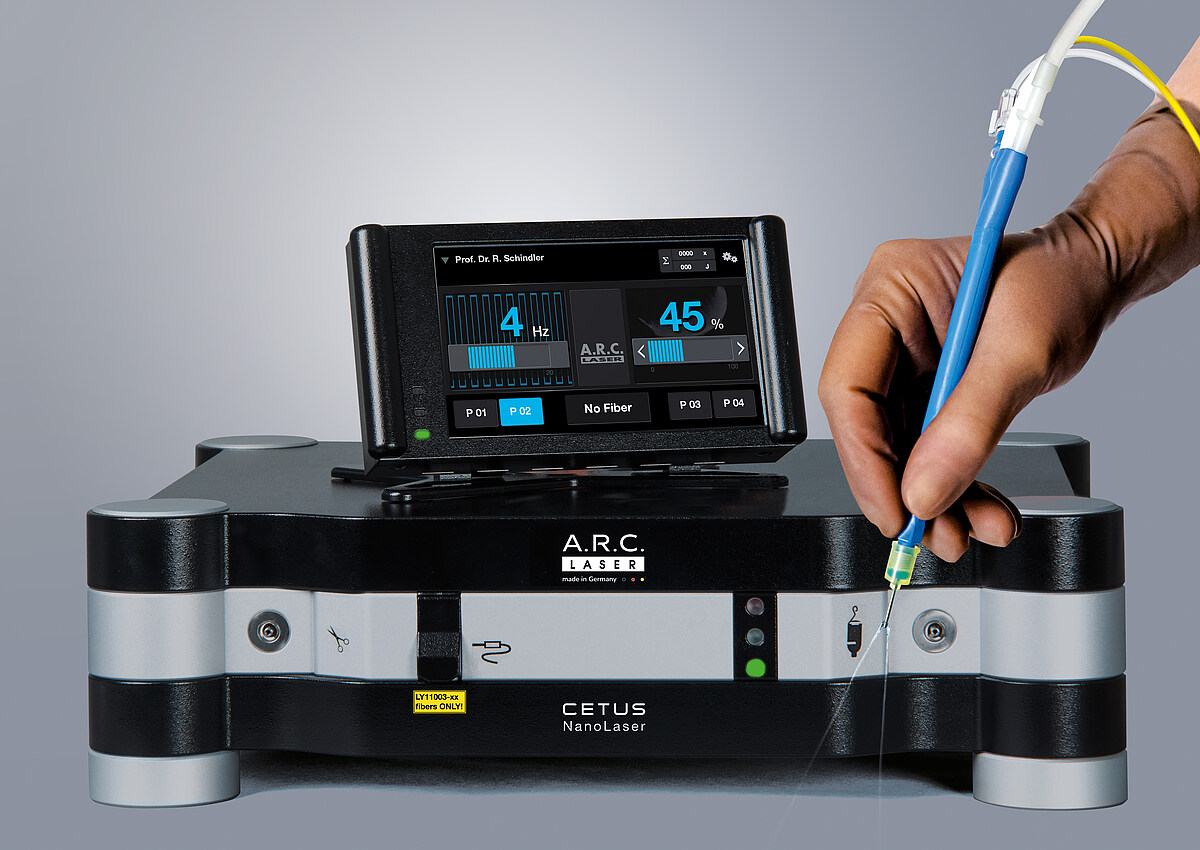

Cetus NanoLaser

Integrate laser cataract surgery easily into the operating room

The CETUS is very compact and fits comfortably next to or under your phaco machine.

A simple coupling of the NanoLaser with all common ultrasound machines is done via the pneumatic vitrectomy port of your phaco machine.



Information for Physicians

Laser disposable handpieces

offer best performance

Cost-effective laser disposables eliminate the need for cleaning, sterilizing and tuning the phaco handle.

  • Complete disposable sets are therefore possible.
  • The nano laser is maintenance-free and does not require a maintenance contract.
  • Laser Class 1 – no laser radiation emitted, thus no laser safety goggles necessary

The NanoLaser complements your operating room

with a laser system.

Similar to an upgrade, it extends the functionality of your phaco machine for cataract surgery.

The Cetus NanoLaser is designed for use in any operating room.

  • The touch screen makes it easy to operate the system
  • All your surgical steps remain the same
  • Seamless workflow from the beginning

Easy integration

into the practice routine

The CETUS Nano-Laser can be easily integrated into the practice routine. Ideally, it complements the existing phaco machine with the laser feature. Optimally, the Nano-Laser will enable you to offer premium surgery with the laser within a short time.

  • Increase the attractiveness of your practice with the laser
  • Offer your patients premium treatment

Technical data

Techn. Subject to changes.
Max. Energy 10 mJ
Operating mode pulsed
Shot frequency variable up to 10 Hz
Wavelength 1064 nm
Pulse energy 3 mJ – 10 mJ
Pulse length 5 ns
Operation 7“ Touchscreen
Power supply 110-240 Vac, 650 VA, 50 to 60 Hz
Dimensions 135 x 478 x 421 mm
Weight 12 kg

Subject to technical changes. © A.R.C. Laser GmbH 2023
