C-Las

Your reliable companion

C-Las from A.R.C. Laser is a carbon dioxide laser (CO2 laser) and a proven working horse since decades for razor-thin and blood-free cutting and ablation of tissues. For years, the C-Las has been well established in many disciplines. Thanks to its reliability and versatility, the C-Las is popular with physicians worldwide.

Due to the compact design, the laser and accessories (micromanipulator C-Pro, focus handpieces, laser safety goggles, smoke evacuation, etc.) can be stored within the clever trolley without the need to occupy valuable space in the operating room. With a maximum power 30 Watts and 10 Watts in Superpulse, you have more than enough power available than is necessary in the daily operating routine.

Other than many manufacturers we use a horizontal high-performance ceramic laser cavity which stands by your side in every given situation for years without any loss of power. The air cooling also makes it particularly maintenance-free - unlike water-cooled systems.

Accessories

„Made in Germany“

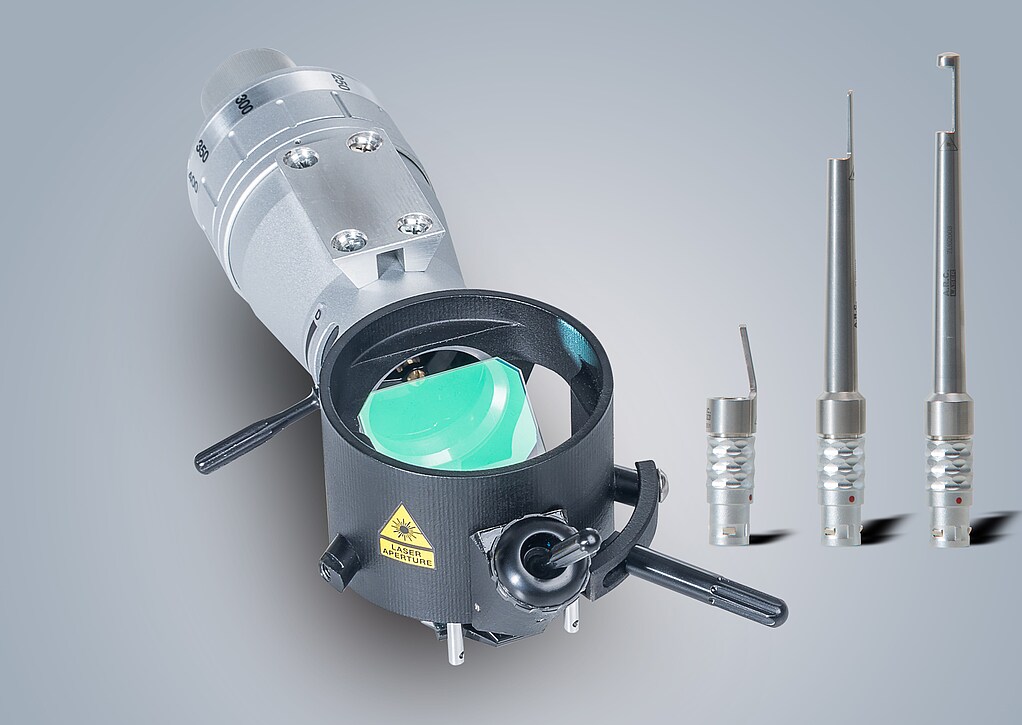

Our high precision C-Pro micromanipulator with a spot diameter of only 100 µm is the best choice for optimal results. Adaptable to all common microscopes, the C-Pro offers a precise, continuous adjustment of the working distance between 200-500mm. With the focus and defocus lever it is possible to intuitively change the spot diameter between cutting and coagulation by increasing or decreasing the spot diameter without having to take a look from the surgical field. Hand-held, the C-Las with its articulated arm and handpiece makes a good figure in your operating room as well.

Technical data

* End of mirror joint arm
Laser CO2 -Laser (Carbon dioxide lasers)
Display Color-touchscreen
Wavelength 10600 nm
Output power * 30 Watt
10 Watt Super Pulse
Pulse length 20 ms to 500 ms / CW
Pulse pause 20 ms to 500 ms / SP
Aiming beam Red 635 nm, adjustable
Beam guidance Articulated arm with micromanipulator or handpiece
Power supply 100-260 V~ 47-63 Hz 10 A
Dimensions 491 x 478 x 200 mm
Weight 30 kg

Subject to technical changes. © A.R.C. Laser GmbH 2023
